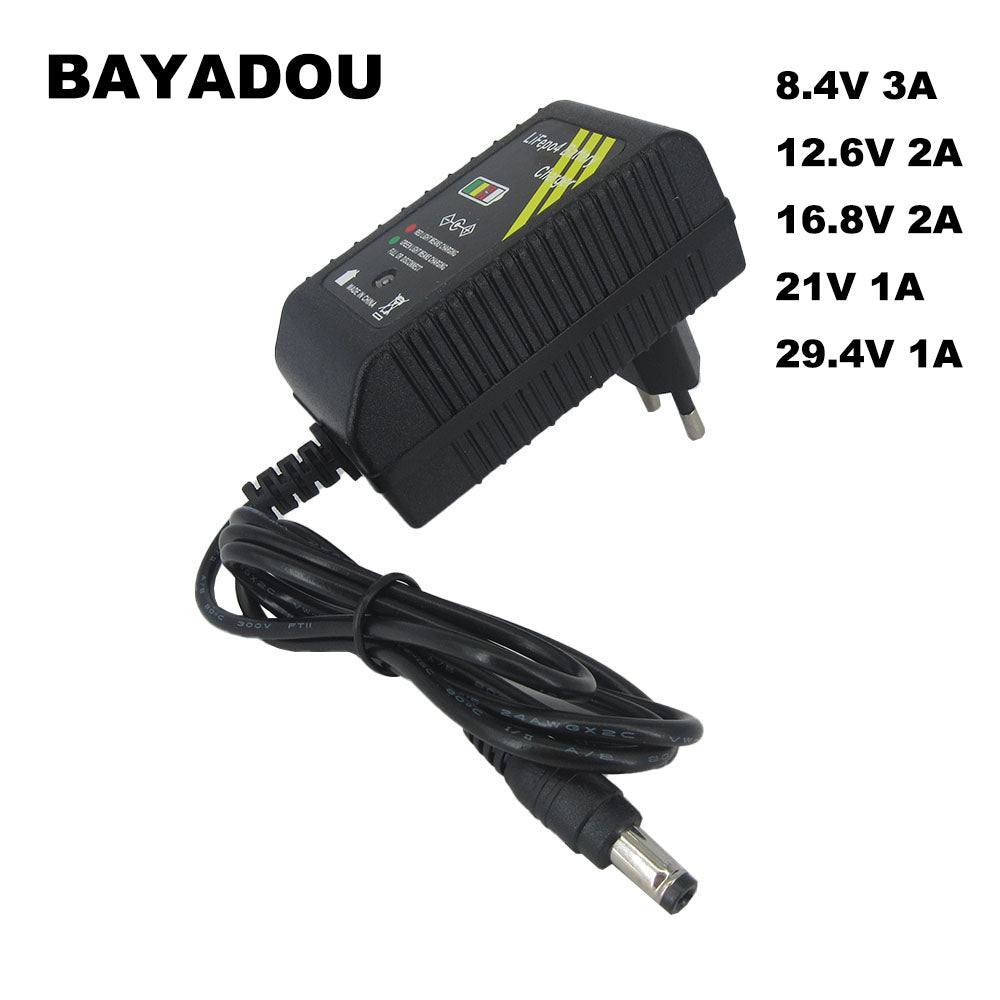

25.2V 1A 1000MA DC Lithium Charger 2S 8.4V 3A 3S 12V 12.6V 2A 4S 14.4V 14.8V 16.8V 2A 5S 21V 1A 6S 21.6V 22.2V 1A 7S 24V 29.4V 1A Li-ion Wall Charger

Charger description

Input Voltage:100-240V AC 50/60HZ

Output Voltage:8.4V / 12.6V / 16.8V / 21V / 25.2V / 29.4V

Charge mode:  CC-CV

First stage:CC-constant current charging, the LED indicator is red. When charging to the rated voltage, it will switch to the second stage.

Second stage:CV-constant voltage charging, the current will gradually decrease until the LED indicator turn to green, and the battery has been fully charged to 90% - 95%. The battery continues to charge at a small current until it is fully charged.

LED Light:

RED ---Charging

Green---Full charged, Stop automatically and turn green when the battery is full charged.

Charger Safety:

1.Short-circuit protection
2.Over-current protection
3.Over-voltage protection
4.Over-temperature protection

Parcel include:

1pcs Li-ion Charger

1pcs  AC Charger plug(eu plug you can choose)
