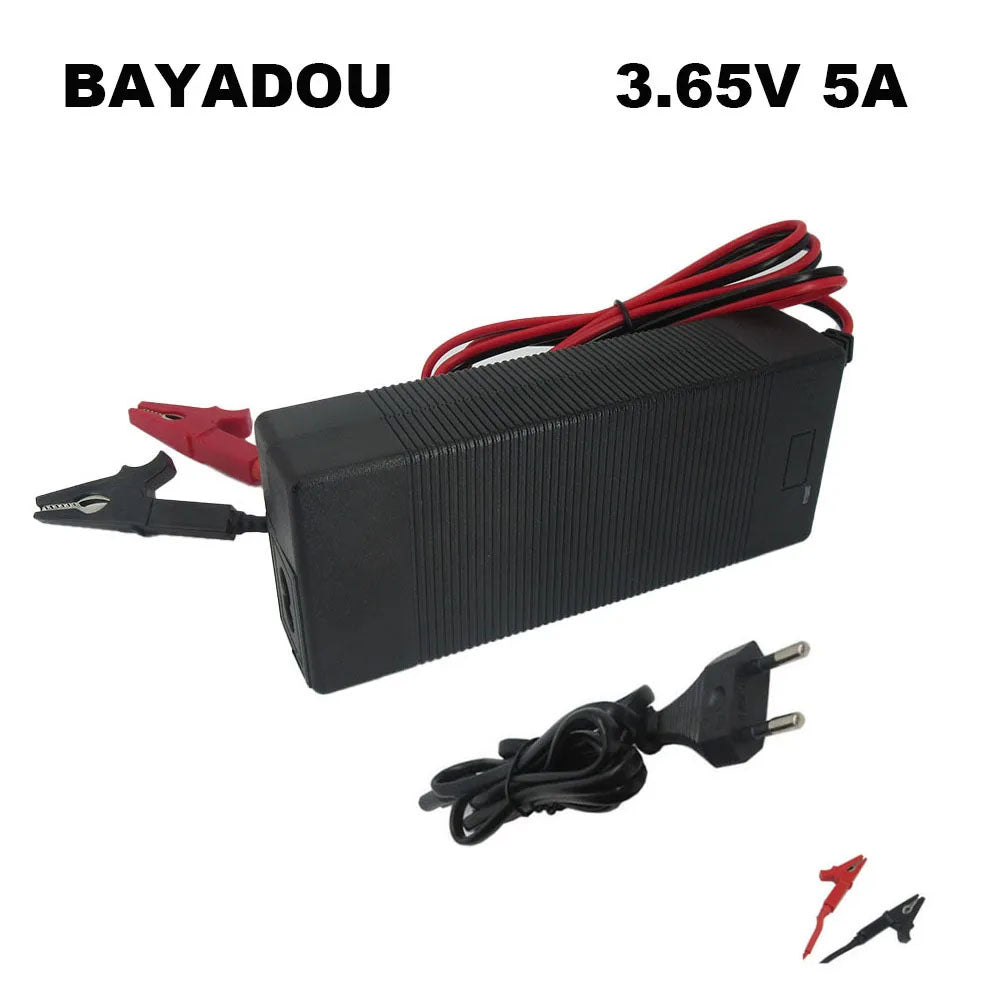

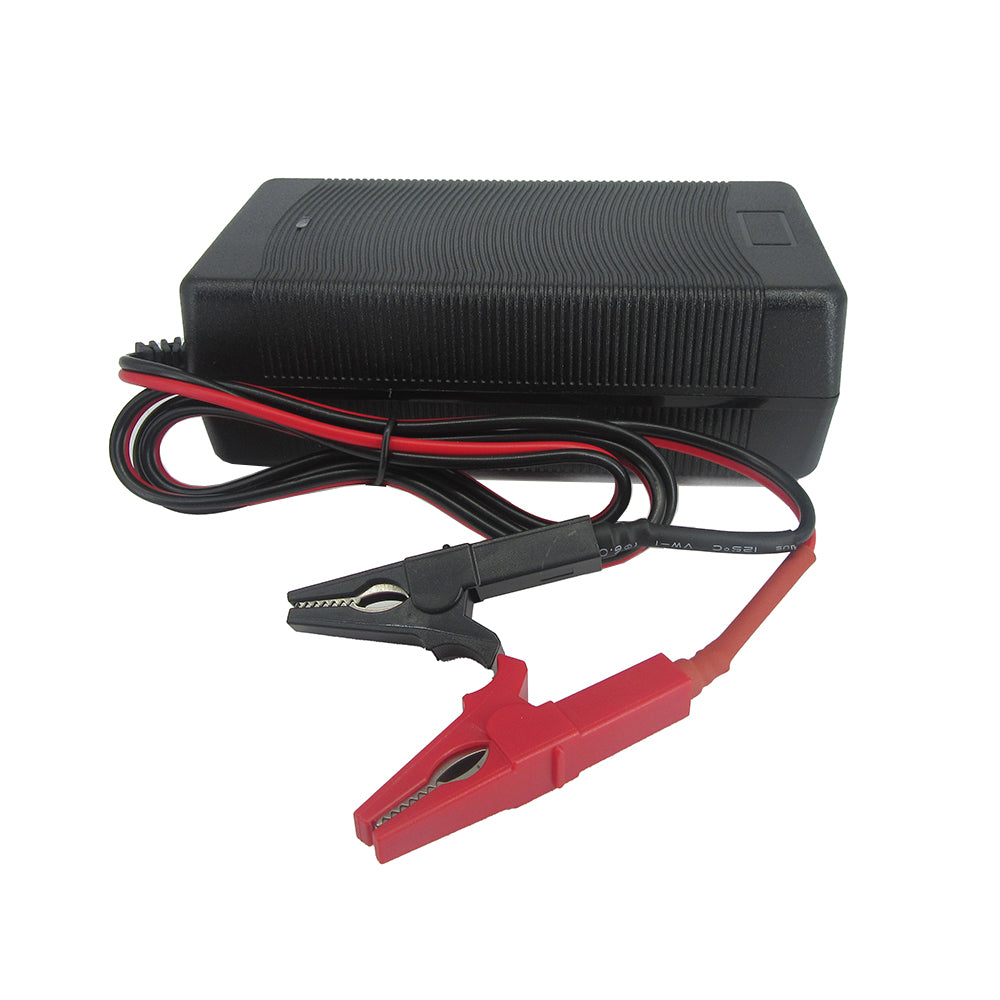

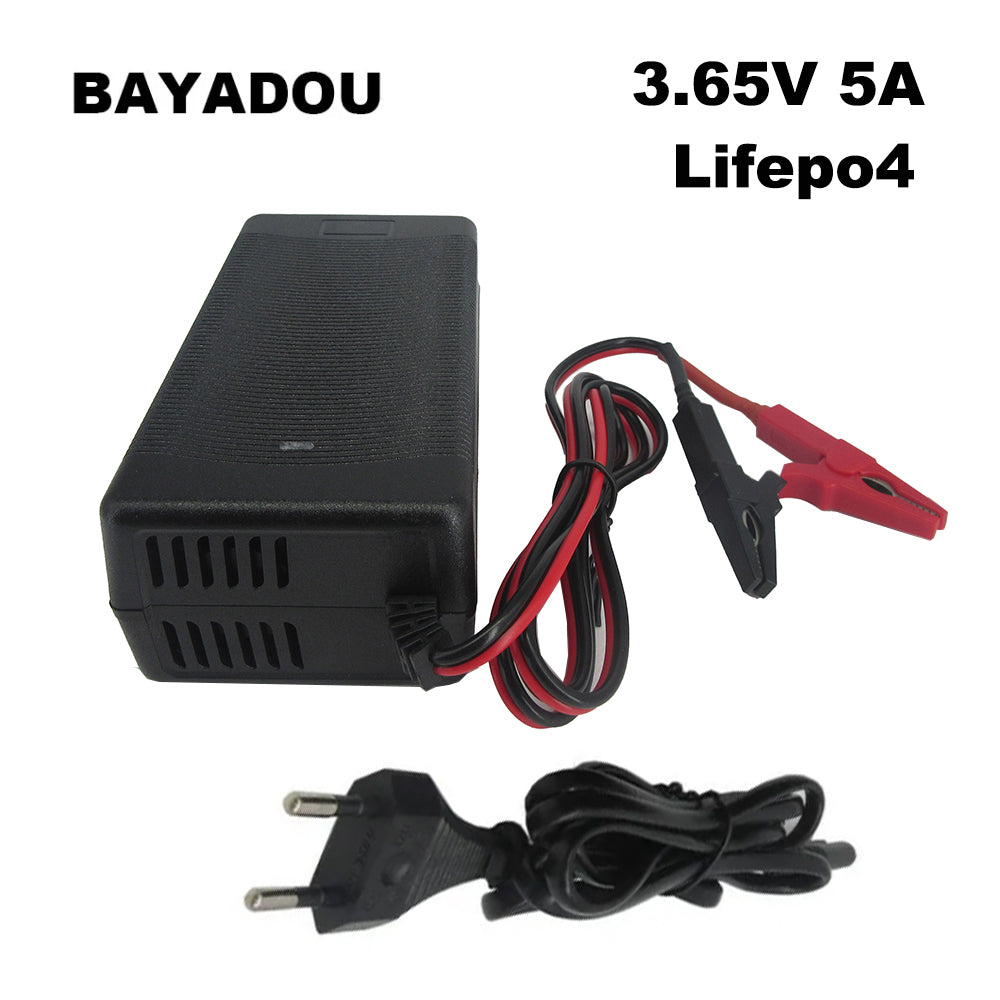

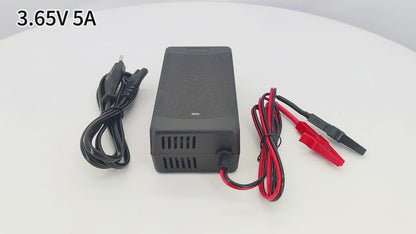

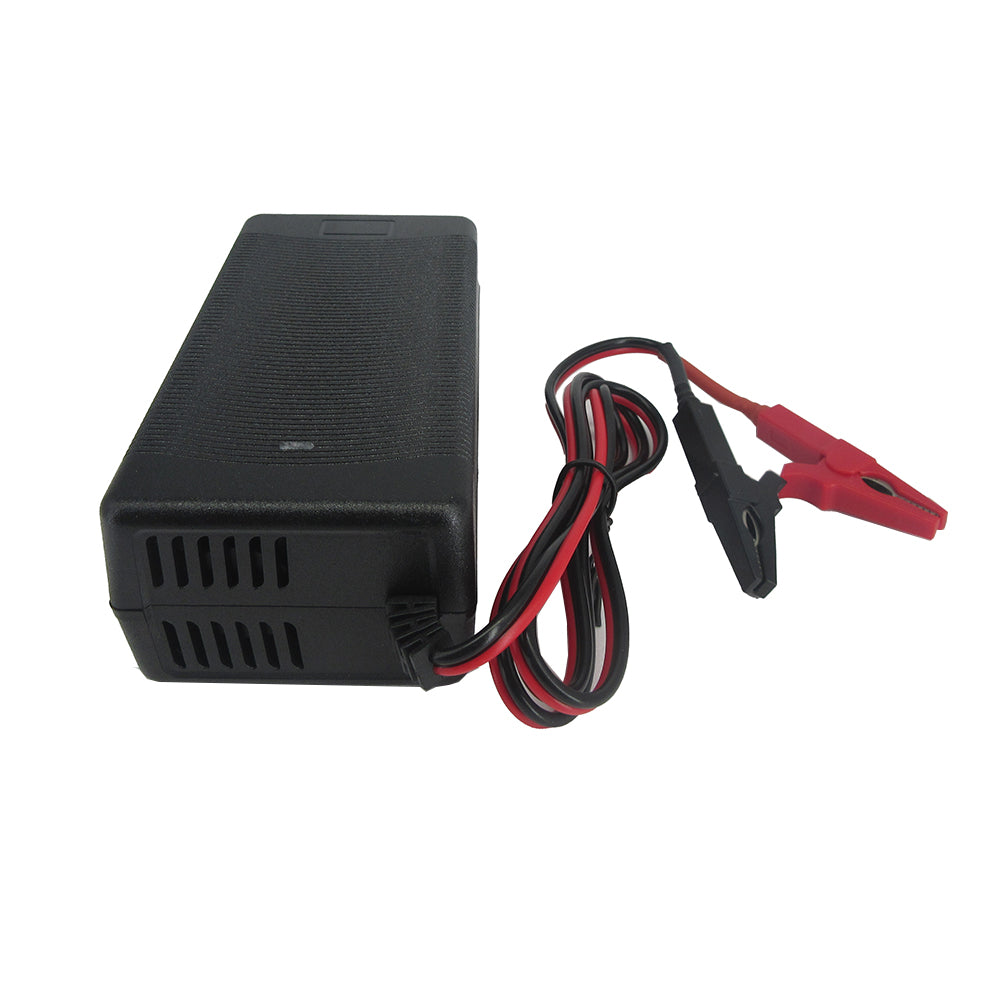

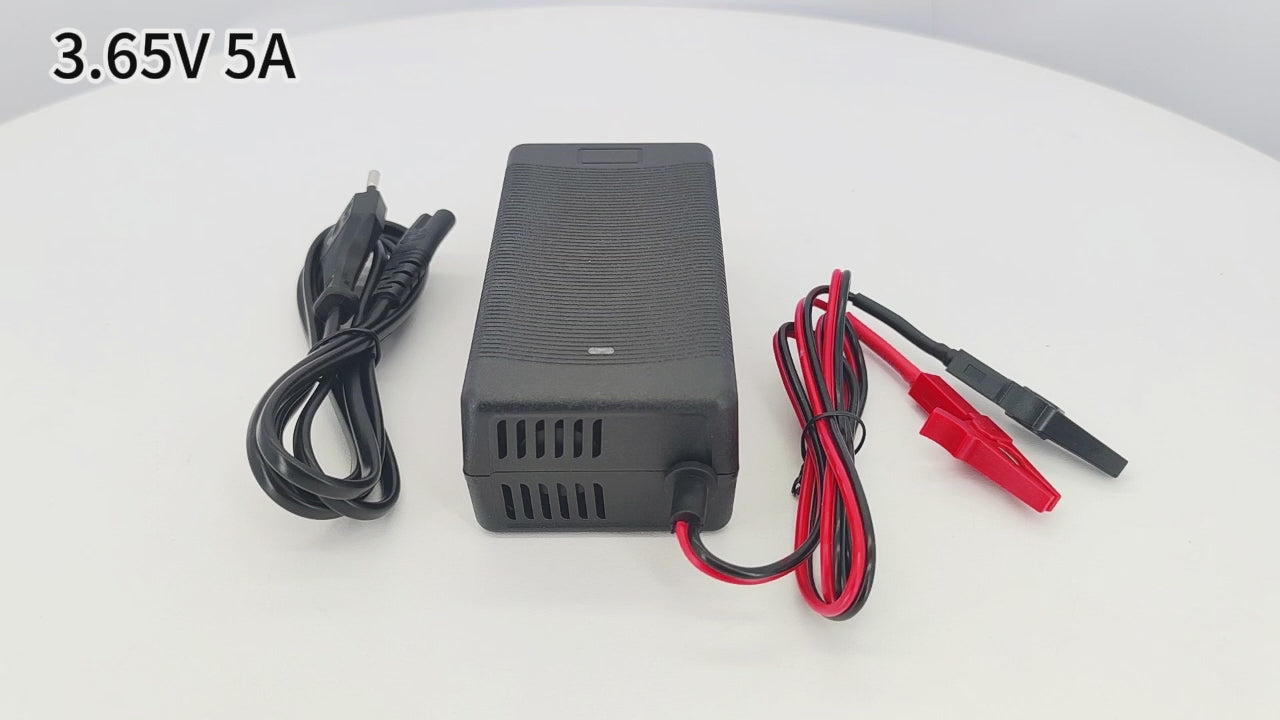

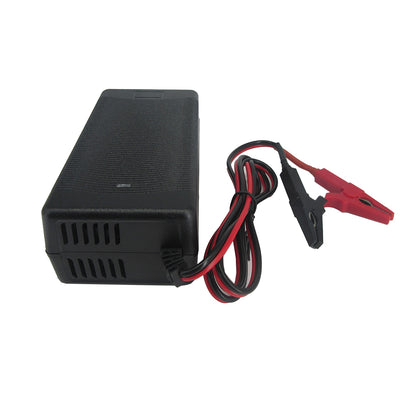

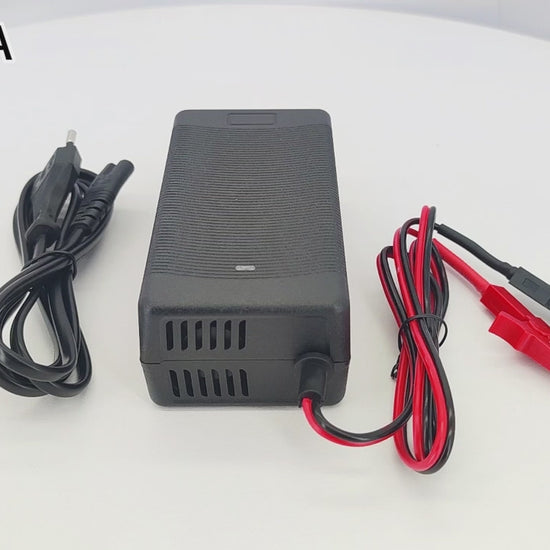

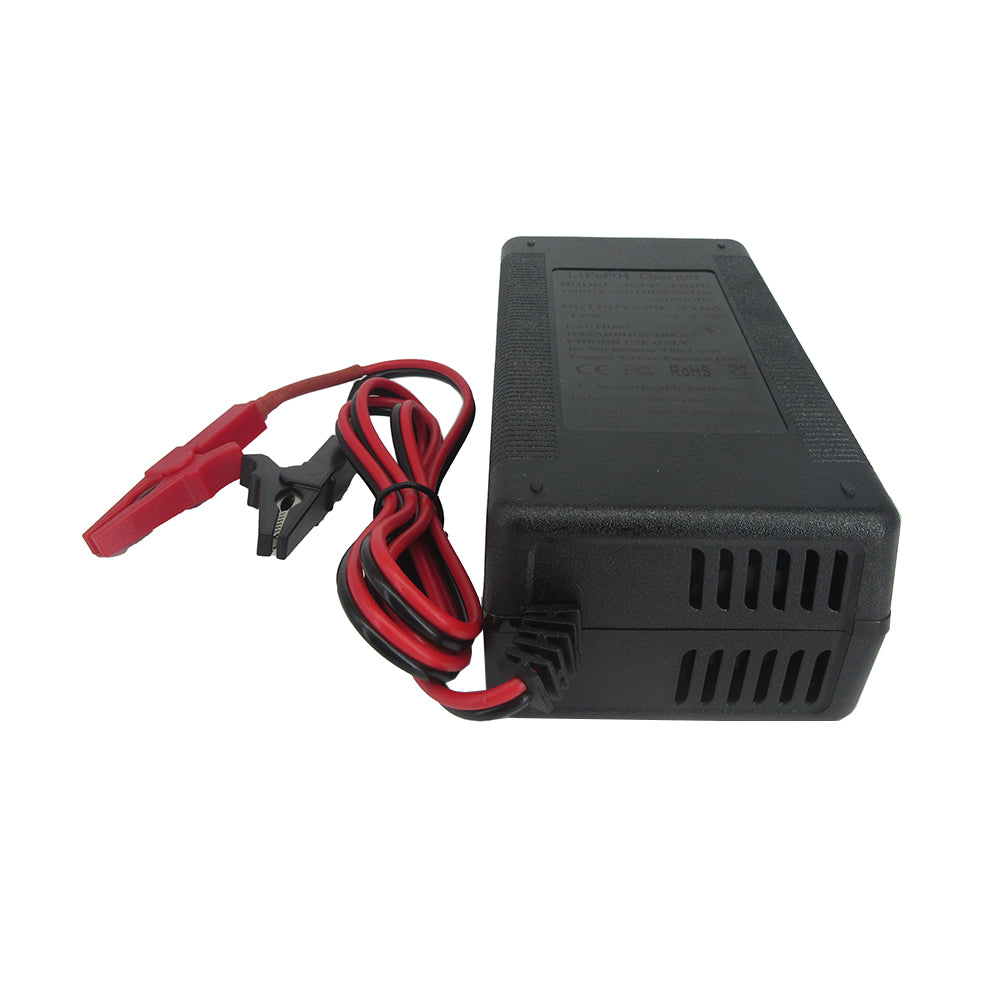

BAYADOU 3.2V 3.3V 5A Lifepo4 Charger 1S 3.65V 3.65 Volt 30AH 40AH LFP Energy Storage Solar Iron Phosphate RV Battery Cell Smart Chargers

BAYADOU 3.2V 3.3V 5A Lifepo4 Charger 1S 3.65V 3.65 Volt 30AH 40AH LFP Energy Storage Solar Iron Phosphate RV Battery Cell Smart Chargers

$16.00 USD
$26.66 USD $16.00 USD
Sale Sold out
Connector

Charger description

Input: 100-240V 50/60Hz .

Output:3.65V 5.0A

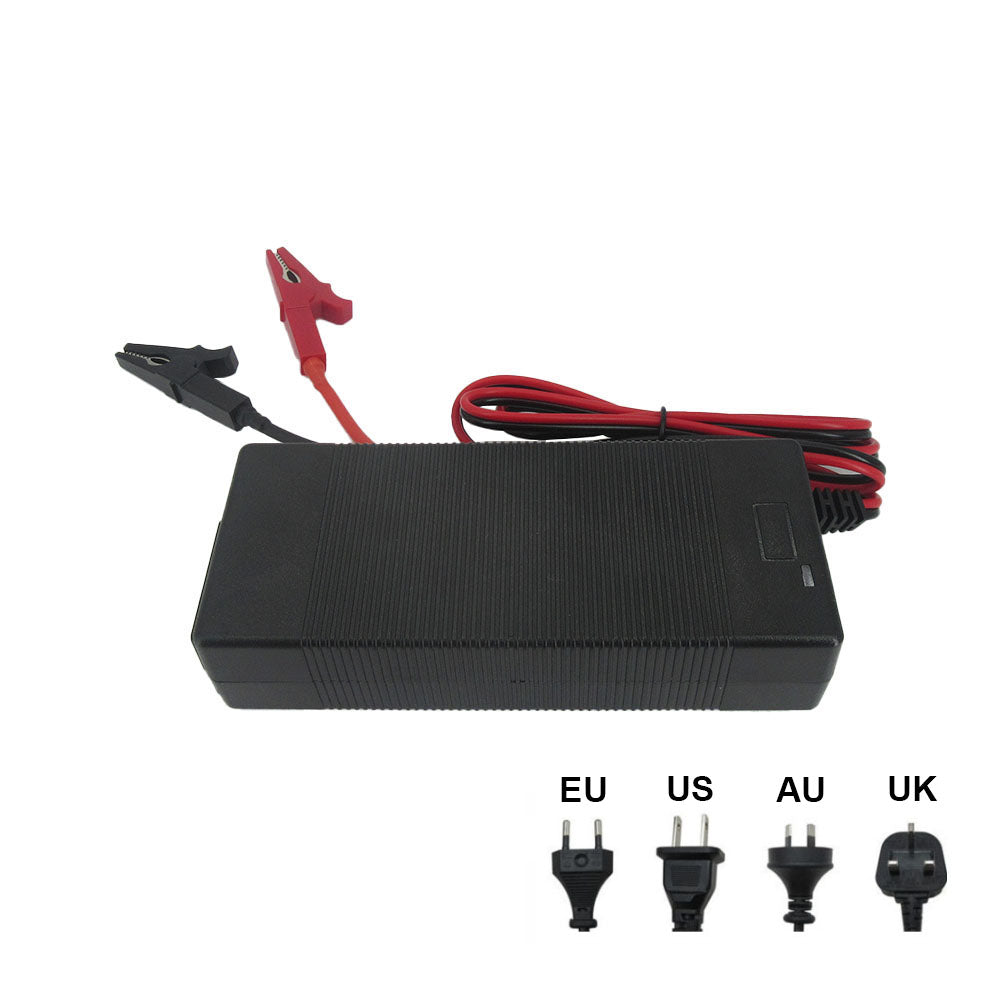

AC charger plug :US/EU/UK/AU Plug we can offer.

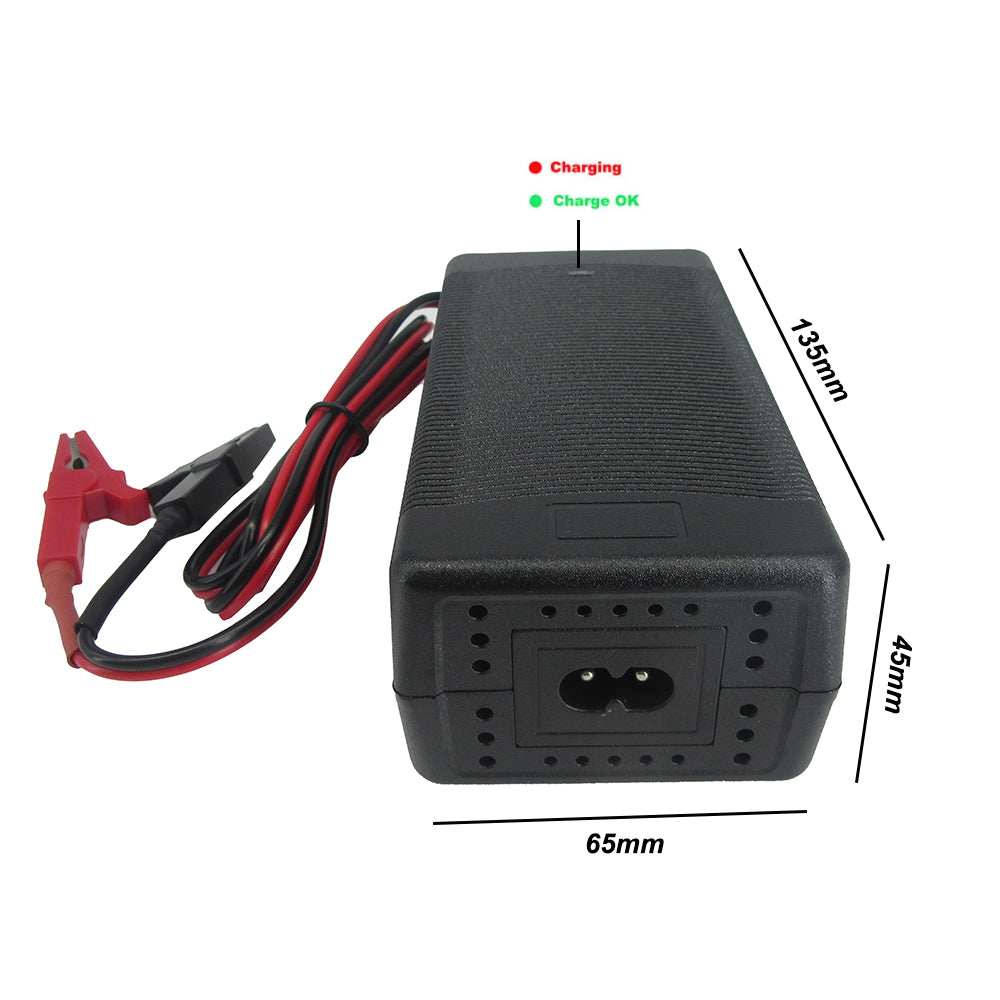

Charger Size:126*56*33mm

Safety standard:CE/RoHS

Apply to:3.2V 3.3V 1S Lifepo4 Battery(Not More Than 40AH)

Charge Mode:CC-CV

Charge Port:Alligator Clip (can be customized)

Warranty:1 years

shipping method:china post and so on

prepare time :1-3days

Charge efficiency:≥90%

Prepare Time :if have stock. Shipment within 48 hours.without stock ,prepare time is about 3-5days

Customs fee:Buyer Payment

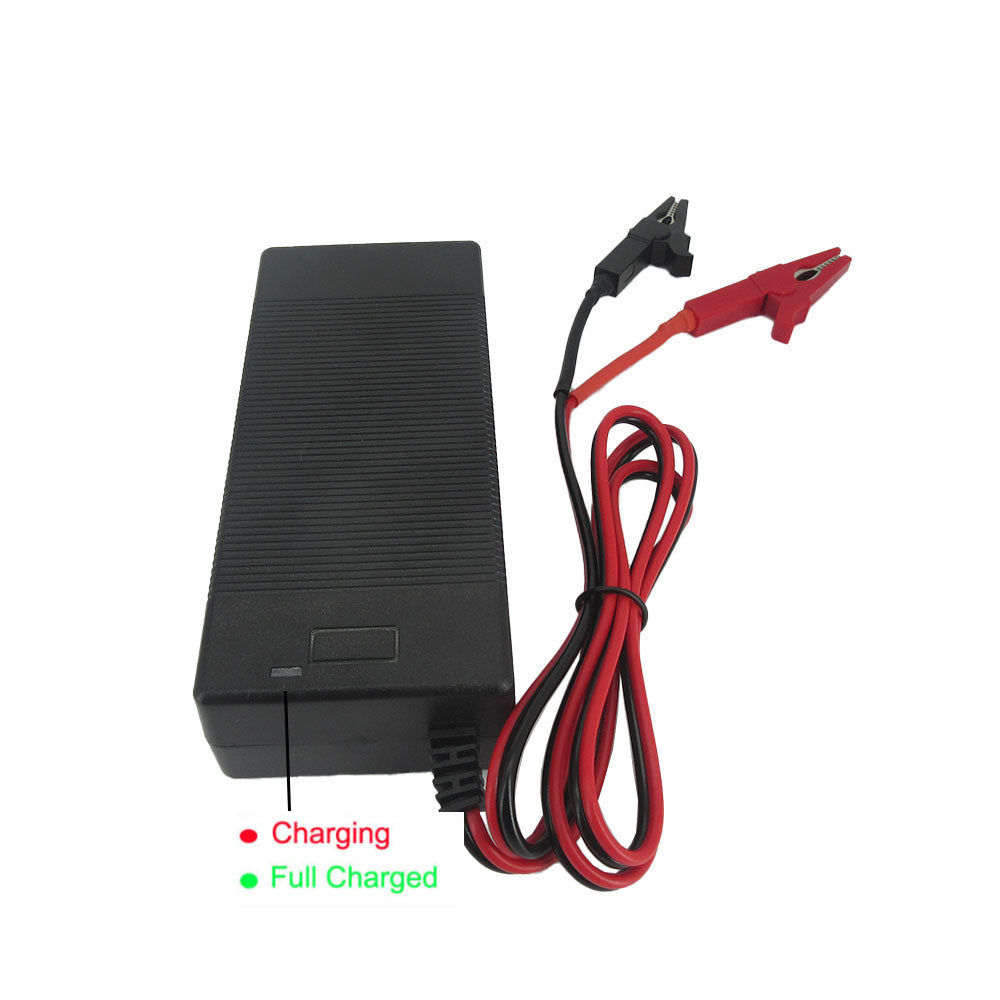

LED Light:

RED ---Charging

Green---Full charged,Stop automatically and turn green when the battery is full charged.

Notice:

When charging, first connector to the battery, then connect to AC; after full, cut off AC, then pull the battery plug. If you pull the battery plug first while charging, especially when the charging current is large (red light), it is very easy to damage the charger.

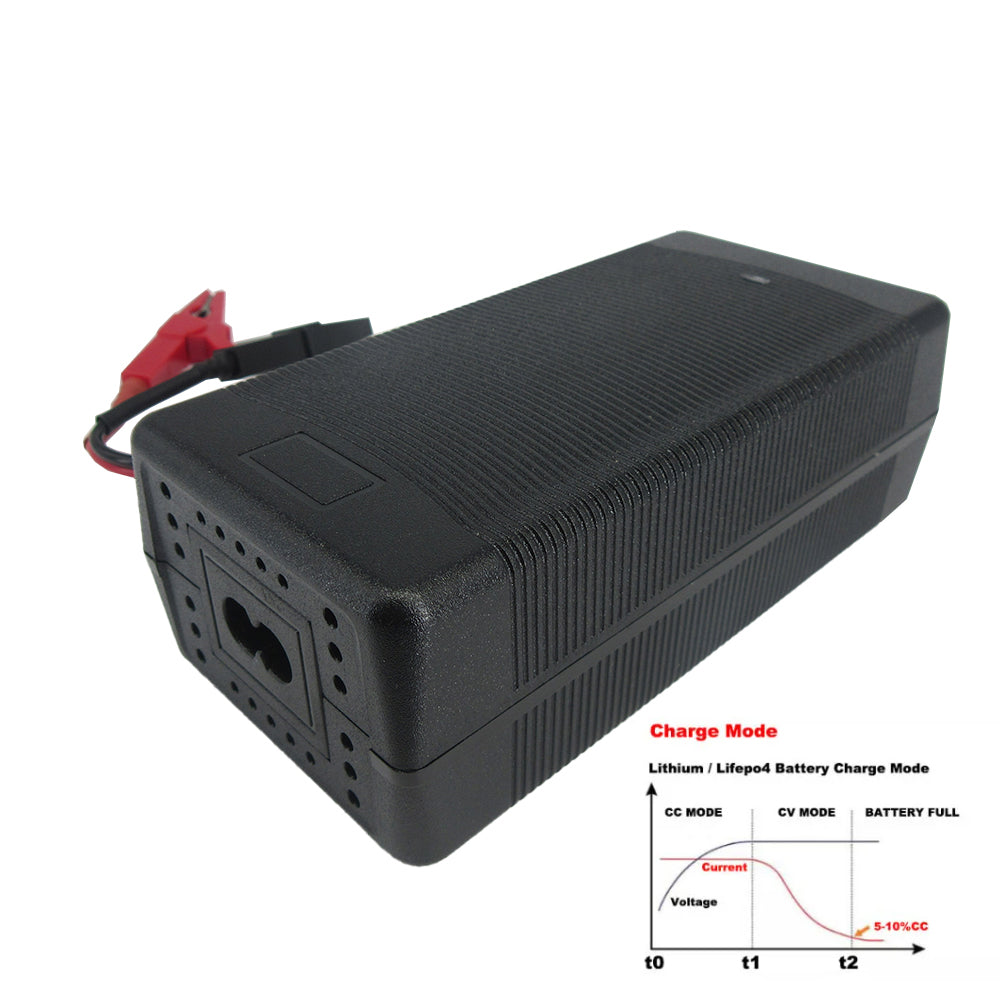

Charge mode:CC-CV

First stage:CC-constant current charging, the LED indicator is red. When charging to the rated voltage, it will switch to the second stage.

Second stage:CV-constant voltage charging, the current will gradually decrease until the LED indicator turn to green, and the battery has been fully charged to 90% - 95%. The battery continues to charge at a small current until it is fully charged.



Parcel include:

1pcs 3.65V 5A Lifepo4 Charger

1pcs  AC Charger plug(US/EU/UK/AU plug you can choose)
