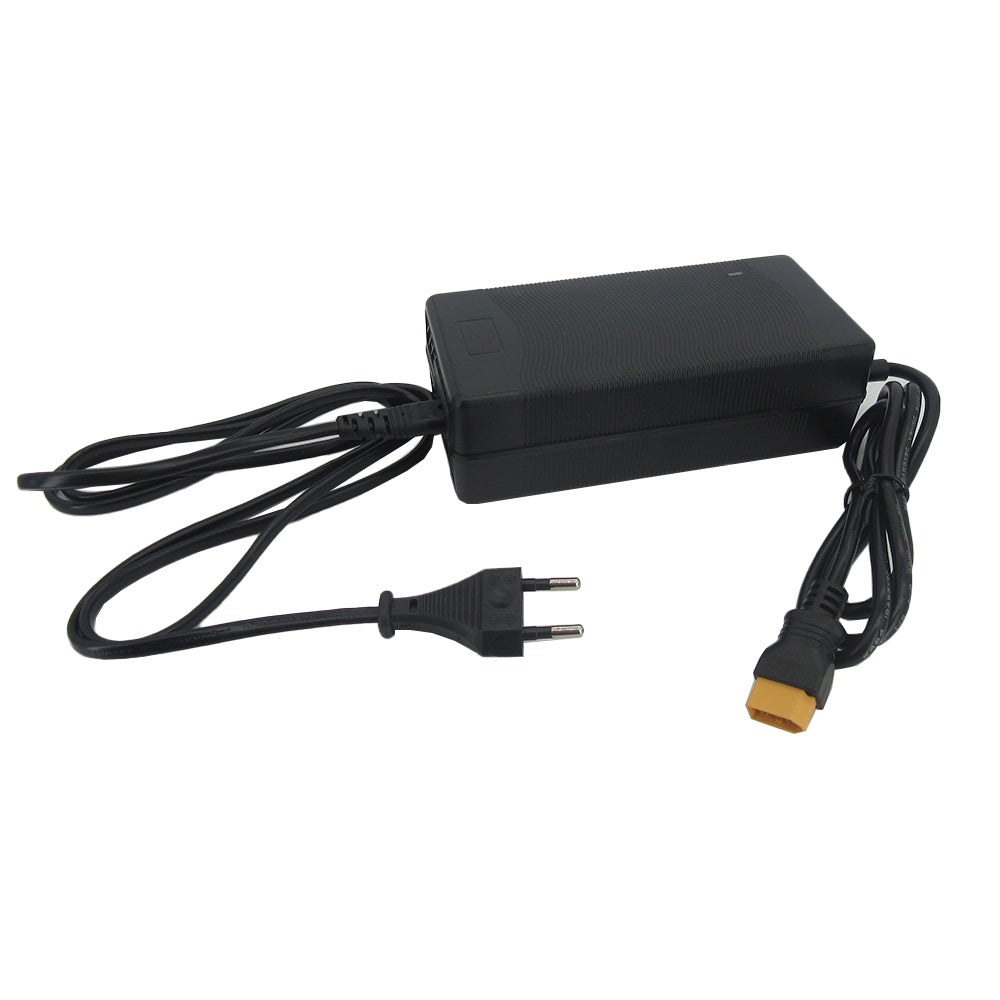

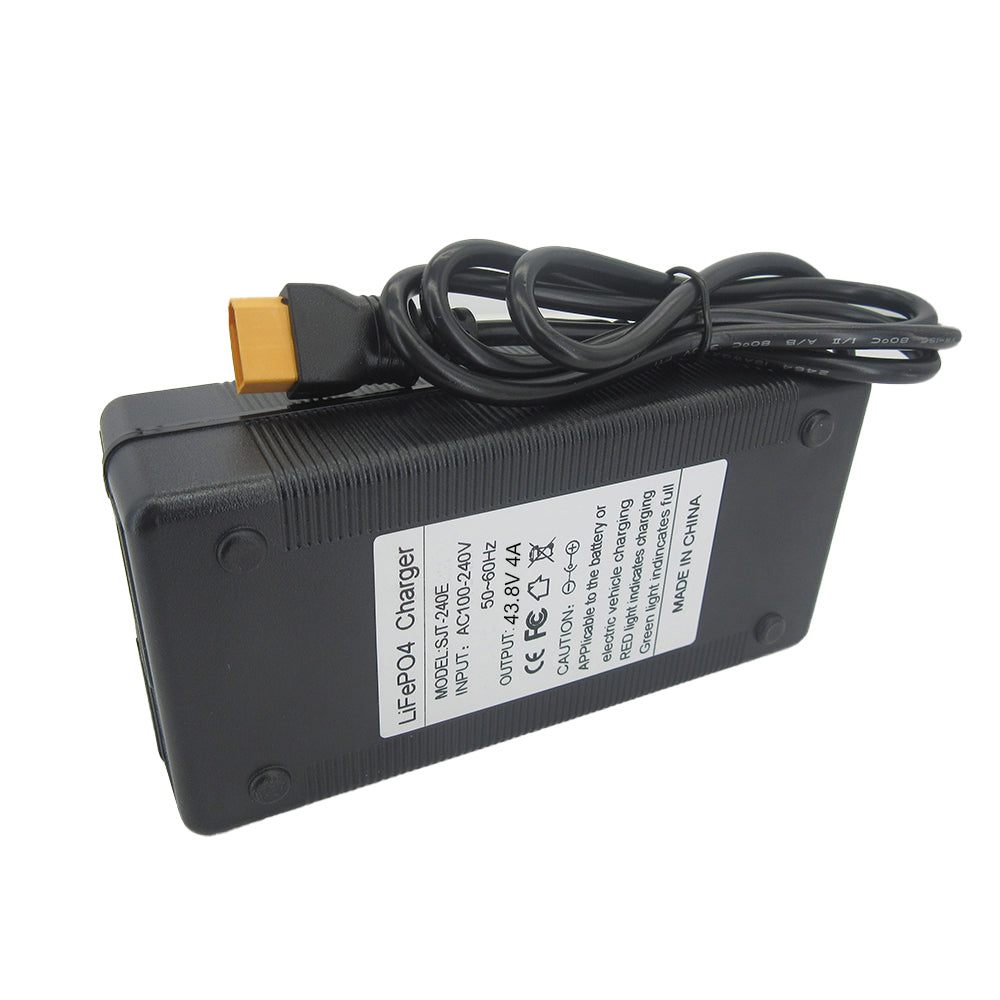

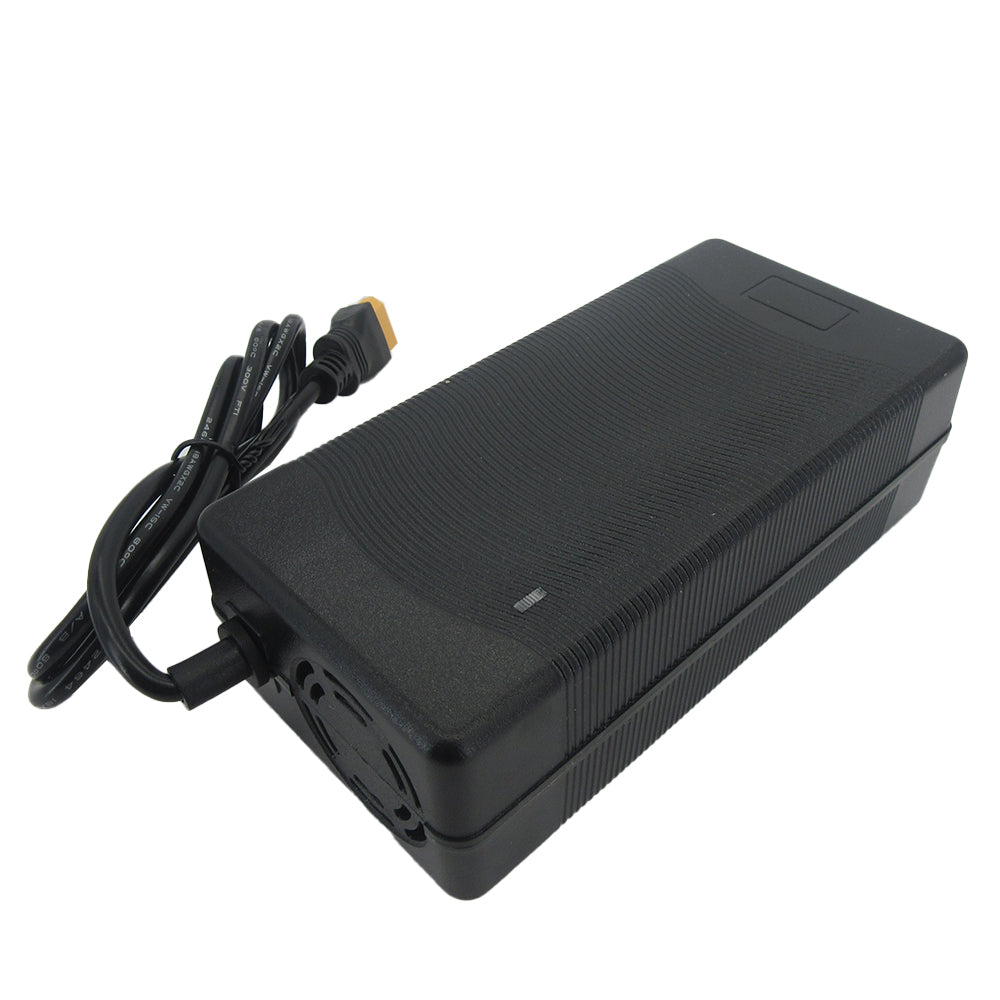

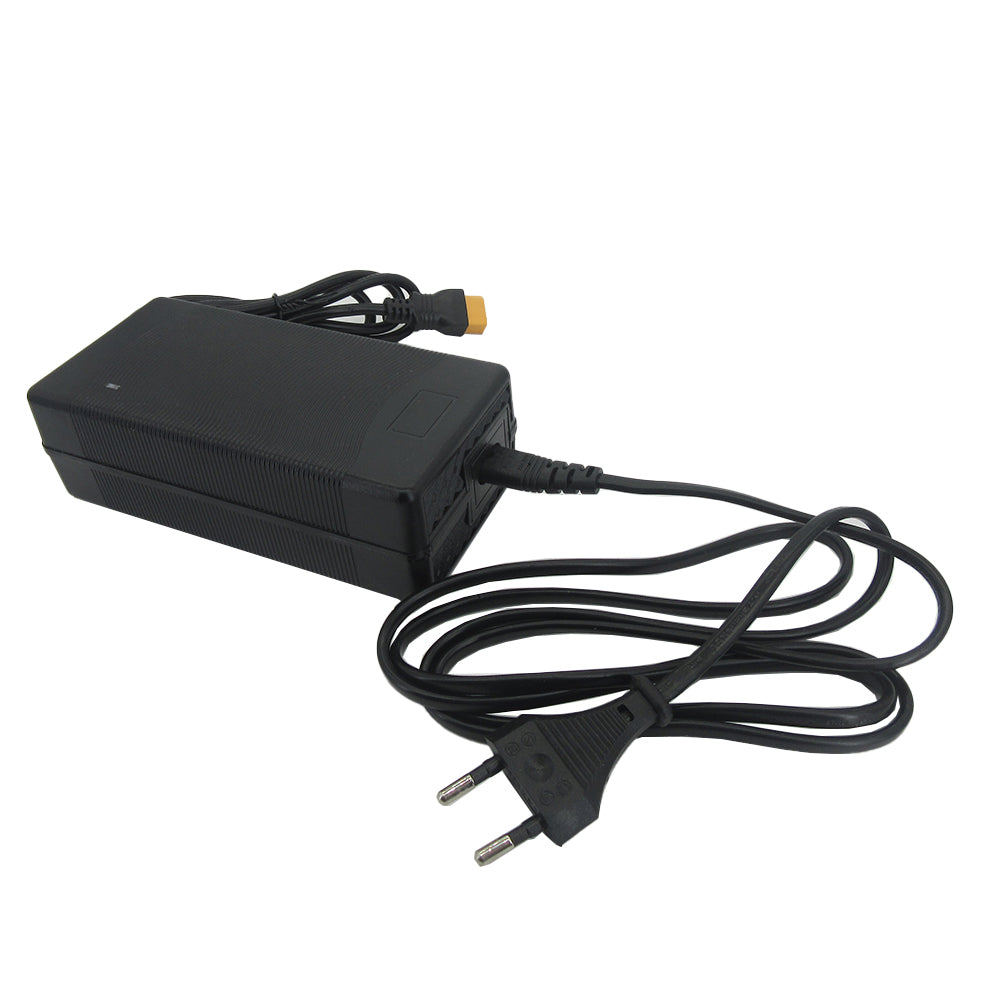

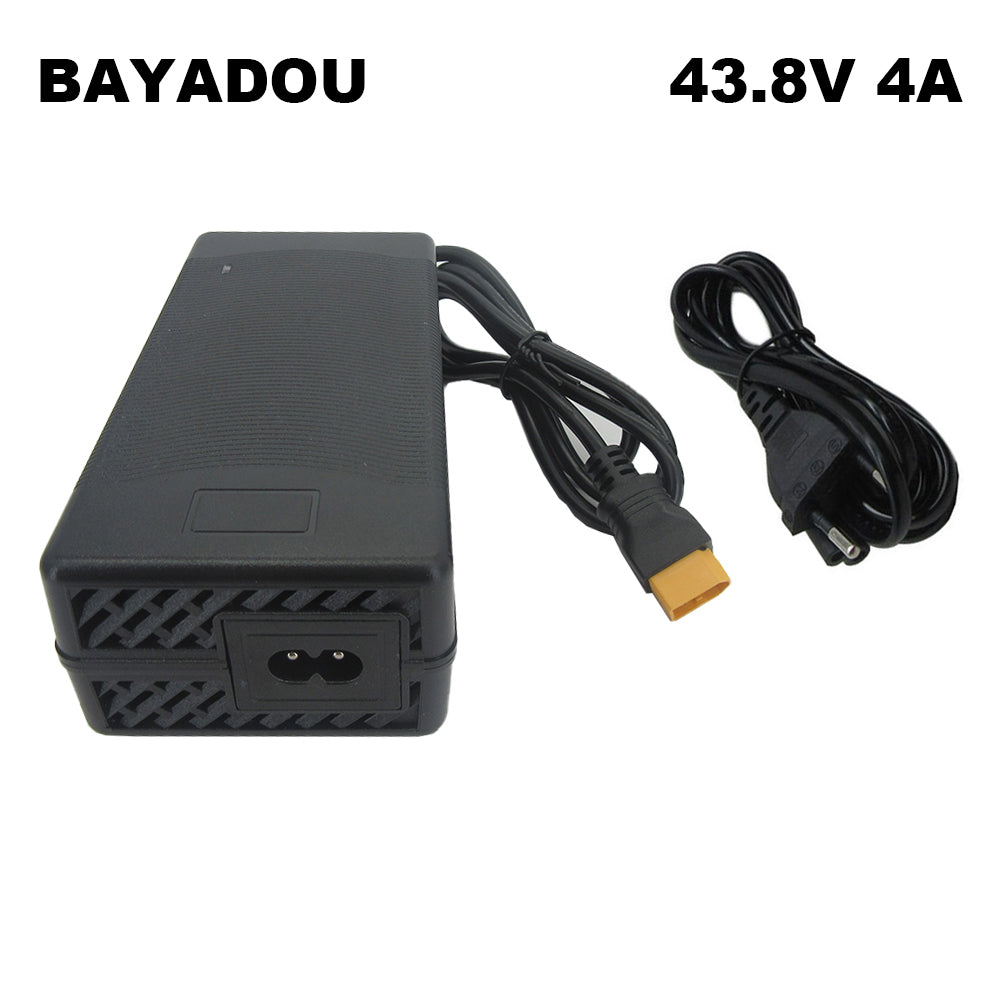

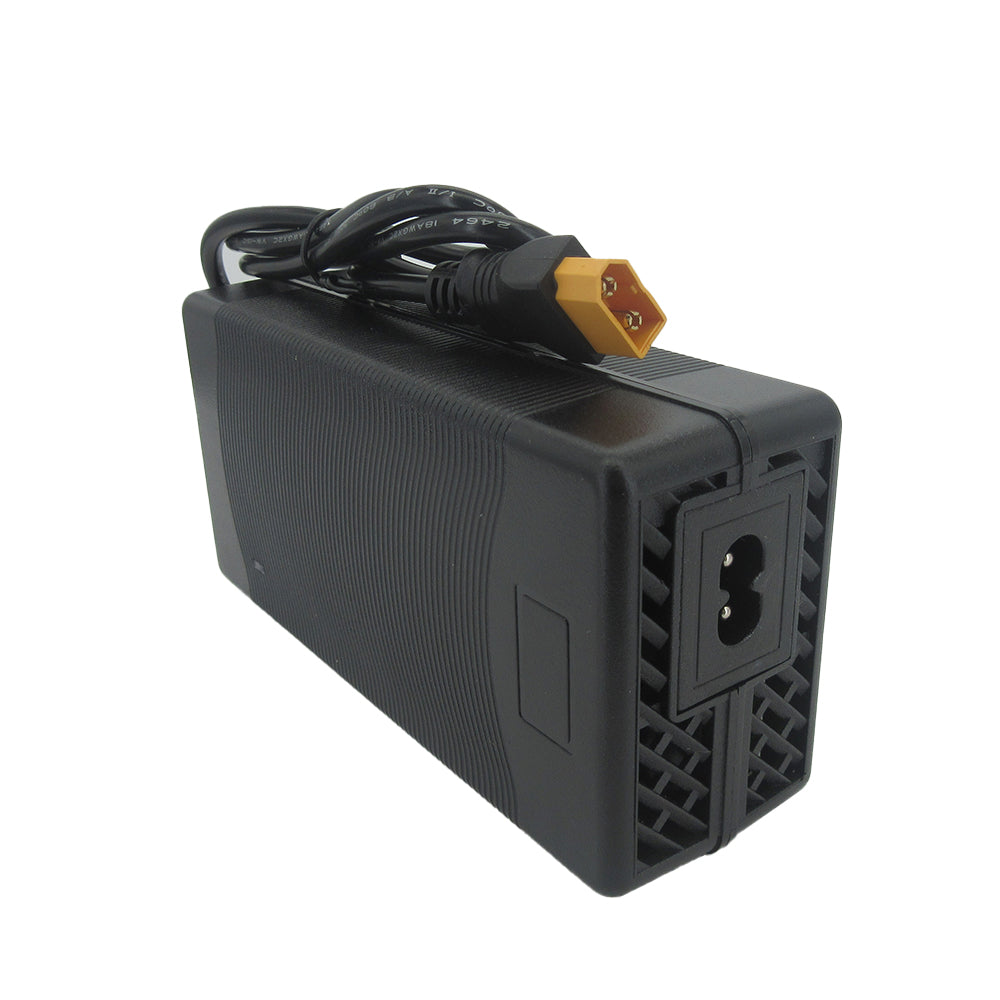

Charger description
Input Voltage:100-240V AC 50/60HZ
Output Voltage:43.8V
Output Current:4A
Size:151*74*47mm
Weight:0.3KG

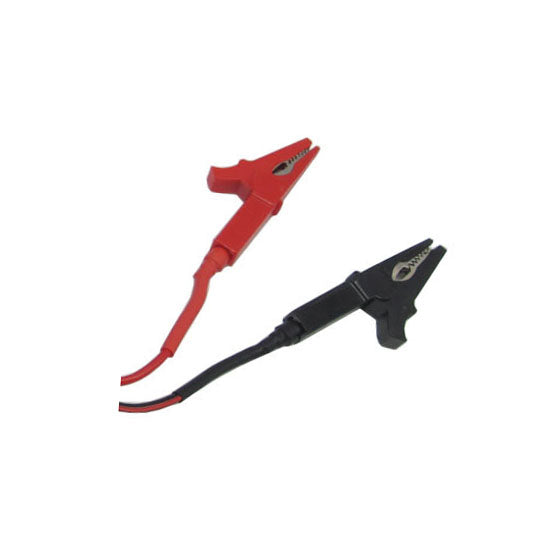

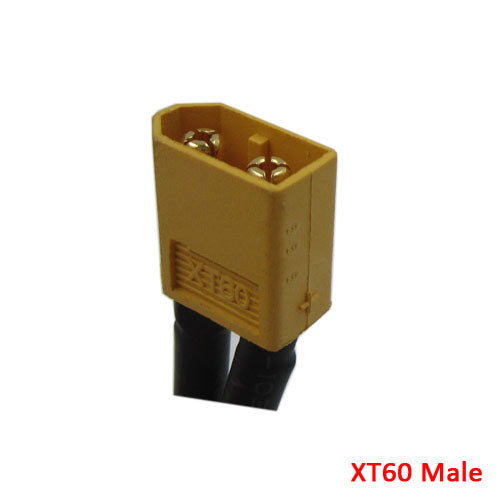

Connector: crocodile clip / XT60 Male (other port please contact us)
Charging Plug:US/EU/UK/AU plug we can offer
Safety standard:CE
Apply to:36V 12S Lifepo4 battery pack
Notice:
When charging, first connector to the battery, then connect to AC; after full, cut off AC, then pull the battery plug. If you pull the battery plug first while charging, especially when the charging current is large (red light), it is very easy to damage the charger.
LED Light:
RED ---Charging
Green---Full charged, Stop automatically and turn green when the battery is full charged.
Charge mode:CC-CV
First stage:CC-constant current charging, the LED indicator is red. When charging to the rated voltage, it will switch to the second stage.
Second stage:CV-constant voltage charging, the current will gradually decrease until the LED indicator turn to green, and the battery has been fully charged to 90% - 95%. The battery continues to charge at a small current until it is fully charged.
Parcel include:
1pcs 43.8V 4A Lifepo4 Charger
1pcs AC Charger plug(US/EU/UK/AU plug you can choose)
