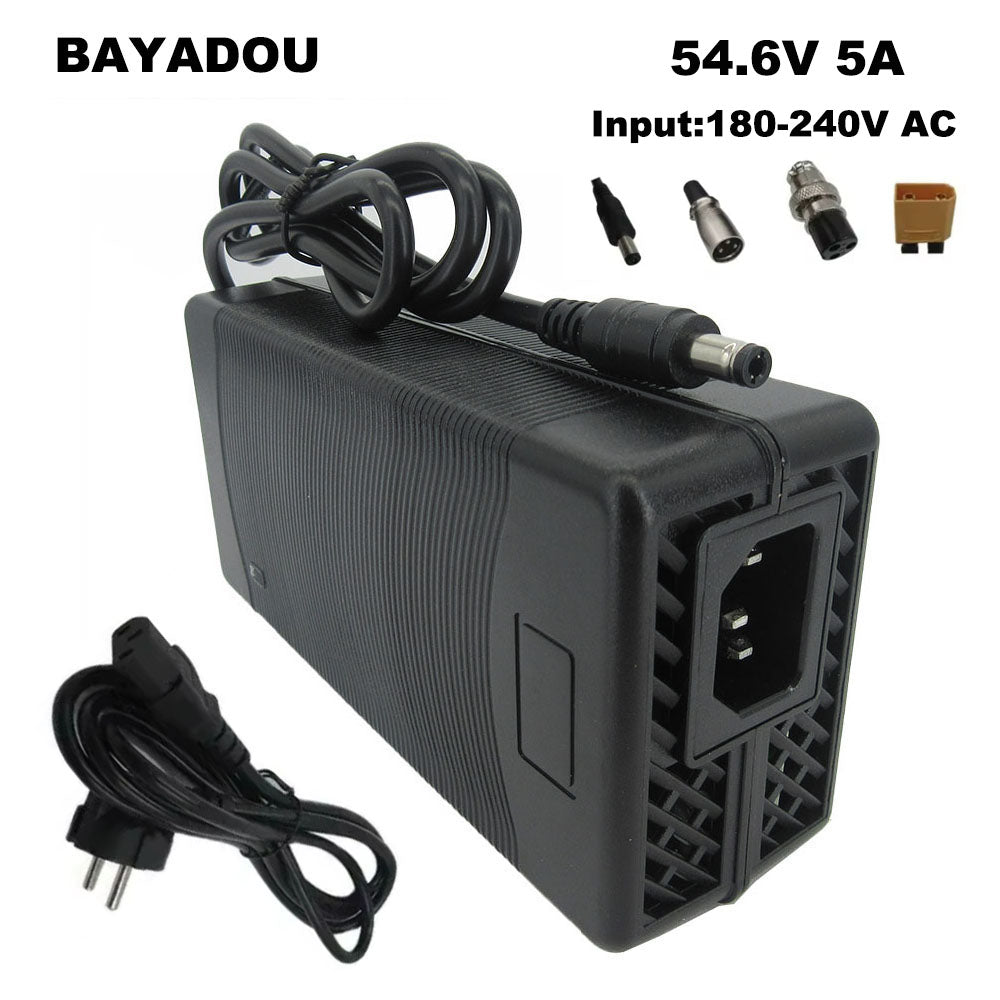

Charger description
Input:180-240VAC 50-60 Hz
Output:54.6V 5A
Connector: DC 5.5*2.5MM (compatible with DC 5.5*2.1MM)
Charger plug: US/EU/UK/AU Plug you can choose
Apply to:48V 13S Lithium Li-ion battery pack(can't more than 40AH)
Size:151*74*47mm
Warranty:1 years
Shipping method:China post and so on
Customs fee:Buyer Payment
Charge mode: CC-CV
First stage:CC-constant current charging, the LED indicator is red. When charging to the rated voltage, it will switch to the second stage.
Second stage:CV-constant voltage charging, the current will gradually decrease until the LED indicator turn to green, and the battery has been fully charged to 90% - 95%. The battery continues to charge at a small current until it is fully charged.
LED Light:
RED ---Charging
Green---Full charged, Stop automatically and turn green when the battery is full charged.
Charger Safety:
1.Short-circuit protection
2.Over-current protection
3.Over-voltage protection
4.Over-temperature protection
Parcel include:
1pcs 54.6V 5A Li-ion Charger
1pcs AC Charger plug(US/EU/UK/AU plug you can choose)
