58.4V 2A / 3A
Input:100-240V AC 50-60 Hz
Output:58.4V 2A / 3A
Power of charger:120W / 180W
Size:135*55*45MM / 151*74*47MM
Color:Black
Charge Port: DC 5.5*2.5mm(also suit for DC 5.5*2.1MM)
Charger plug :US/EU/UK/AU Plug you can choose
Apply to:48V 16S Lifepo4 battery pack
Charge Mode:CC-CV
Charge Efficiency: >85%
Security protection: OVP/OCP/ Overload protection/ Short-circuit protection
58.4V 5A
Input:180-240V AC 50-60 Hz
Output:58.4V 5A
Power of charger:300W
Color:Black
Charge Port: DC 5.5*2.5mm(also suit for DC 5.5*2.1MM)
Charger plug :EU/UK/AU Plug you can choose
Apply to:48V 16S Lifepo4 battery pack
Charge Mode:CC-CV
Charge Efficiency: >85%
Security protection: OVP/OCP/ Overload protection/ Short-circuit protection
Charge mode: CC-CV
First stage:CC-constant current charging, the LED indicator is red. When charging to the rated voltage, it will switch to the second stage.
Second stage:CV-constant voltage charging, the current will gradually decrease until the LED indicator turn to green, and the battery has been fully charged to 90% - 95%. The battery continues to charge at a small current until it is fully charged.

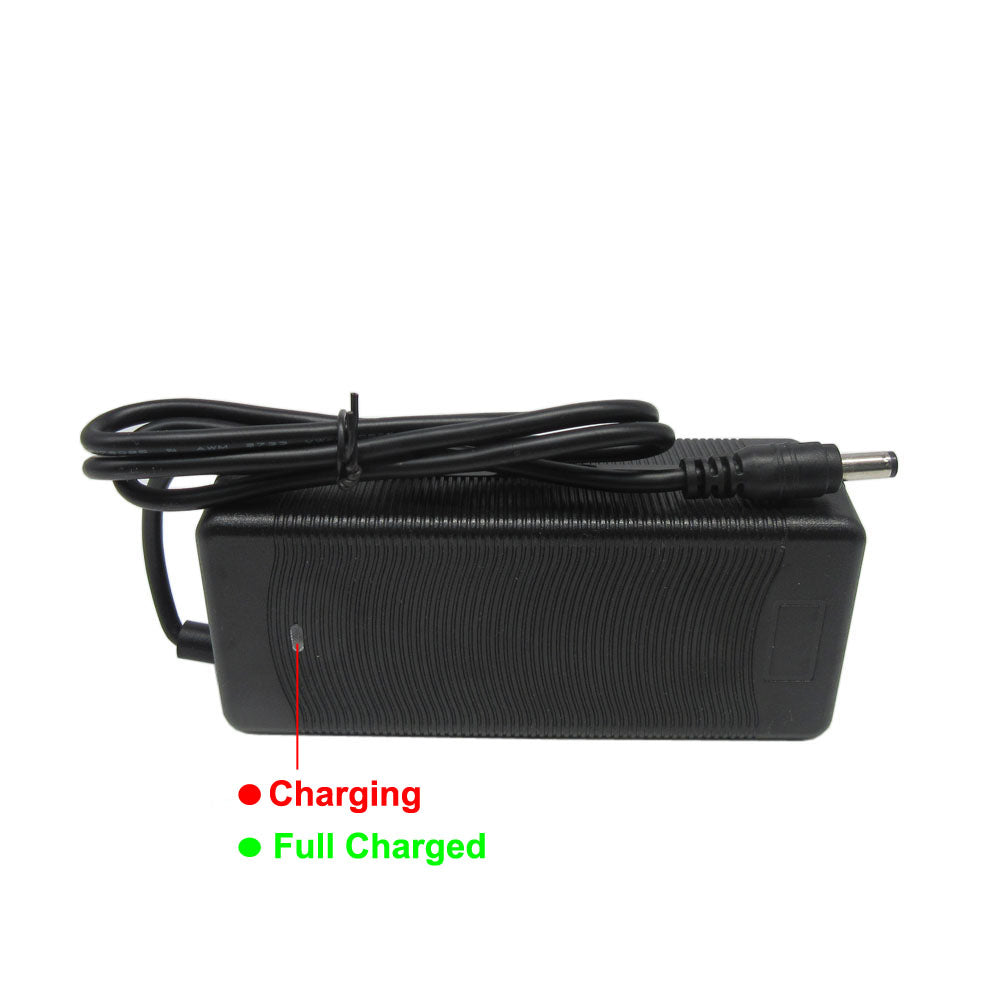

LED Light:
RED ---Charging
Green---Full charged, Stop automatically and turn green when the battery is full charged.
Charger Safety:
1.Short-circuit protection
2.Over-current protection
3.Over-voltage protection
4.Over-temperature protection
Parcel include:
1pcs 58.4V Lifepo4 Charger
1pcs AC Charger plug(US/EU/UK/AU plug you can choose)
